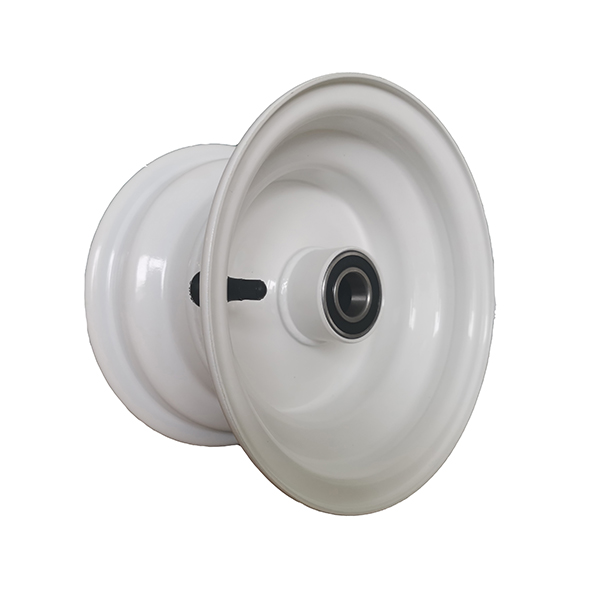

Integral Hub Type
Integral Hub Type
| WHEEL SIZE | HUB LENGTH(mm) | HUB DIAMETER(mm) | TYRE SIZE | HUB CONFIGURATIONS(OPTIONAL) |
| 4x2.25 | 104.7 | 42 | 3.00-4 | Roller Bearing/Ball Bearing/flange Ball Bearing Standard/Keyway/Grease Nippel Cap |
| 4x2.25 | 76.1 | 35 | 3.00-4 | |
| 4x2.42 | 51.2 | 35 | 4.10/3.50-4 | |
| 4x2.5 | 66.7 | 35 | 4.10/3.50-4 | |
| 4x2.5 | 70 | 25.6 | 4.10/3.50-4 | |
| 4x2.5 | 109.2 | 35 | 4.10/3.50-4 | |
| 4x2.5 | 95.2 | 35 | 4.10/3.50-4 | |
| 5x2.5 | 108 | 35 | 4.10/3.50-5 | |
| 5x3 | 88 | 52 | 4.10/3.50-5 | |
| 5x3 | 107.5 | 35 | 4.10/3.50-5 | |
| 5x3 | 100.8 | 35 | 4.10/3.50-5 | |
| 5x3 | 114.3 | 35 | 4.10/3.50-5 | |
| 5x3 | 114.3 | 45.2 | 4.10/3.50-5 | |
| 5x3 | 93.6 | 52 | 4.10/3.50-5 | |
| 5x3 | 107.8 | 35 | 4.10/3.50-5 | |
| 5x3 | 120.1 | 35 | 4.10/3.50-5 | |
| 5x3 | 111 | 45.2 | 4.10/3.50-5 | |
| 5x3 | 92 | 42 | 4.10/3.50-5 | |
| 5x3 | 142.9 | 35 | 4.10/3.50-5 | |
| 5x3.25 | 115.7 | 45.2 | 4.10/3.50-5 | |
| 5x3.25 | 114.3 | 45.2 | 4.10/3.50-5 | |
| 5x3.25 | 93.6 | 50 | 4.10/3.50-5 | |
| 5x3.25 | 120.6 | 35 | 4.10/3.50-5 | |
| 6x3.25 | 146.05 | 35 | 13x5.00-6 | |
| 6x3.25 | 87.8 | 35 | 13x5.00-6 | |
| 6x3.25 | 101 | 26 | 13x5.00-6 | |
| 6x3.25 | 145.1 | 44.5 | 13x5.00-6 | |
| 6x3.25 | 142.6 | 45.2 | 13x5.00-6 | |
| 6x3.25 | 138.9 | 50 | 13x5.00-6 | |
| 6x3.5 | 145.6 | 45.2 | 15x5.50-6 | |
| 6x3.5 | 126.4 | 52 | 15x5.50-6 | |
| 6x3.5 | 155.5 | 50.8 | 15x5.50-6 | |
| 6x3.5 | 51.5 | 52 | 15x5.50-6 | |
| 6x3.5 | 146.9 | 35 | 15x5.50-6 | |
| 6x3.5 | 145.6 | 45.2 | 15x5.50-6 | |
| 6x3.5 | 69 | 45.2 | 15x5.50-6 | |
| 6x3.5 | 142.9 | 45.2 | 15x5.50-6 | |
| 6x3.5 | 145.6 | 45.2 | 15x5.50-6 | |
| 6x3.5 | 127.8 | 42 | 15x5.50-6 | |
| 6x3.5 | 158 | 35 | 15x5.50-6 | |
| 6x3.5 | 65 | 50 | 15x5.50-6 | |
| 6x4.5 | 76 | 44.5 | 15x6.00-6 | |
| 6x4.5 | 83 | 35 | 15x6.00-6 | |
| 6x4.5 | 171.4 | 52 | 15x6.00-6 | |
| 6x4.5 | 170.5 | 52 | 15x6.00-6 | |
| 6x4.5 | 197.56 | 50.8 | 15x6.00-6 | |
| 6x4.5 | 87 | 19.2 | 15x6.00-6 | |
| 6x4.5 | 158.75 | 25.57 | 15x6.00-6 | |
| 6x4.5 | 170 | 35 | 15x6.00-6 | |
| 6x4.5 | 178.8 | 44.5 | 15x6.00-6 | |
| 6x4.5 | 148.6 | 35 | 15x6.00-6 | |
| 6x4.5 | 68 | 35 | 15x6.00-6 | |
| 6x4.5 | 78 | 35 | 15x6.00-6 | |
| 6x4.5 | 166.8 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 66.7 | 35 | 15x6.00-6 | |
| 6x4.5 | 166 | 35 | 15x6.00-6 | |
| 6x4.5 | 88.9 | 52 | 15x6.00-6 | |
| 6x4.5 | 184.2 | 35 | 15x6.00-6 | |
| 6x4.5 | 177.1 | 35 | 15x6.00-6 | |
| 6x4.5 | 181 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 177.1 | 35 | 15x6.00-6 | |
| 6x4.5 | 184.2 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 165 | 35 | 15x6.00-6 | |
| 6x4.5 | 88 | 52 | 15x6.00-6 | |
| 6x4.5 | 177.8 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 69.9 | 25.57 | 15x6.00-6 | |
| 6x4.5 | 170.2 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 62 | 35 | 15x6.00-6 | |
| 6x4.5 | 166.8 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 175.3 | 35 | 15x6.00-6 | |
| 6x4.5 | 177.1 | 35 | 15x6.00-6 | |
| 6x4.5 | 184.2 | 45.2 | 15x6.00-6 | |
| 6x4.5 | 169.2 | 42 | 15x6.00-6 | |
| 6x4.5 | 76.7 | 35 | 15x6.00-6 | |
| 6x4.5 | 127.36 | 42 | 15x6.00-6 | |
| 6x4.5 | 199.4 | 49 | 15x6.00-6 | |
| 6x4.5 | 143 | 50 | 15x6.00-6 | |
| 6x4.5 | 183.8 | 42 | 15x6.00-6 | |
| 8x2.5 | 77.5 | 35 | 4.00-8 | |
| 8x2.5 | 92.4 | 35 | 4.00-8 | |
| 8x2.5 | 112.5 | 35 | 4.00-8 | |
| 8x3.75 | 80 | 52 | 16x6.5-8 | |
| 8x3.75 | 133.4 | 25.68 | 16x6.5-8 | |
| 8x3.75 | 70 | 35 | 16x6.5-8 | |
| 8x3.75 | 130.5 | 45.2 | 16x6.5-8 | |
| 8x3.75 | 104.8 | 50.2 | 16x6.5-8 | |
| 8x3.75 | 114.3 | 25.7 | 16x6.5-8 | |
| 8x4.5 | 75.6 | 35 | 5.00-8 | |
| 8x4.5 | 166.8 | 45.2 | 5.00-8 | |
| 8x5.375 | 69.8 | 35 | 16x7.50-8 | |
| 8x5.375 | 82 | 50.8 | 16x7.50-8 | |
| 8x5.375 | 86 | 25.7 | 16x7.50-8 | |
| 8x5.375 | 69.8 | 35 | 16x7.50-8 | |
| 8x5.375 | 133.4 | 25.68 | 16x7.50-8 | |
| 8x5.375 | 82.6 | 52 | 16x7.50-8 | |
| 8x5.375 | 102 | 20 | 16x7.50-8 | |
| 8x5.375 | 72 | 52 | 18x6.5-8 | |
| 8x5.375 | 82 | 52 | 18x7.50-8 | |
| 8x5.375 | 88.9 | 19.25 | 18x6.5-8 | |
| 8x5.375 | 69.8 | 35 | 18x7.50-8 | |
| 8x5.375 | 75 | 19.2 | 18x6.5-8 | |
| 8x5.375 | 51.5 | 50 | 18x7.50-8 | |
| 8x5.375 | 174.57 | 42 | 18x6.5-8 | |
| 8x6.188 | 81 | 49 | 20x7-8 | |
| 8x6.375 | 89 | 25.57 | 20x7-8 | |
| 8x7 | 247.2 | 35 | 18x8.50-8 | |
| 8x7 | 106 | 19.2 | 18x8.50-8 | |
| 8x7 | 95 | 52 | 18x8.50-8 | |
| 8x7 | 88.3 | 19.23 | 18x8.50-8 | |
| 8x7 | 96.4 | 25.57 | 18x8.50-8 | |
| 8x7 | 75.6 | 50.8 | 18x8.50-8 | |
| 8x7 | 81.2 | 50.8 | 18x8.50-8 | |
| 8x7 | 85.5 | 19.23 | 18x8.50-8 | |
| 8x7 | 65 | 52 | 18x8.50-8 | |
| 8x7 | 88.9 | 25.6 | 18x8.50-8 | |
| 8x7 | 117.5 | 25.5 | 18x8.50-8 | |
| 8x7 | 88.3 | 19.2 | 18x8.50-8 | |
| 8x7 | 94.68 | 49 | 18x8.50-8 | |
| 9x4 | 78 | 35 | 6.00-9 | |
| 9x4 | 68 | 35 | 6.00-9 | |
| 9x4 | 95 | 30 | 6.00-9 | |
| 10x3.5 | 74 | 52 | 5.00-10 | |
| 10x6 | 106 | 19.2 | 20x8.00-10 | |
| 10x7 | 120.6 | 19.23 | 18x8.50-10 | |
| 10x7 | 217.1 | 47 | 18x8.50-10 | |
| 10x7 | 217.1 | 52 | 18x8.50-10 | |
| 10x8.5 | 97 | 25.57 | 18x10.50-10 | |
| 12x6.5 | 88.9 | 25.6 | 23x8.50-12 | |
| 12x7.5 | 88.3 | 19.23 | 25x10-12 | |
| 12x7.5 | 120.6 | 19.23 | 25x10-12 |
