Solid Tyre Disc Wheels

PRODUCTS > Industrial Wheels > Solid Tyre Disc Wheels

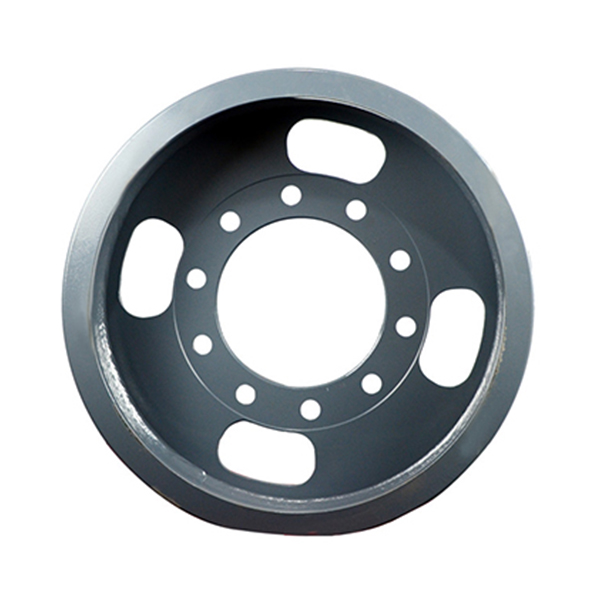

Solid Tyre Disc Wheels

Product details

SIZE（inch）	THICKNESS	WIDTH	INSIDE DIA.	MIN-DIA	MAX-DIA
*WIDTHDIA.**	(±0.5)mm	（0/-0.5）mm	mm	mm	mm
7×12 1/8	8/10	177.8	307.34	307.137	307.543
8×12 1/8	8/10	203.2	307.34	307.137	307.543
9×12 1/8	8/10	228.6	307.34	307.137	307.543
5×14	8/10	127	354.97	354.762	355.168
6×14	10/12	152.4	354.97	354.762	355.168
7×14	10/12	177.8	354.97	354.762	355.168
9×14	10/12	228.6	354.97	354.762	355.168
12×14	10/12	304.8	354.97	354.762	355.168
5×15	10/12	127	380.14	379.933	380.34
6×15	10/12	152.4	380.14	379.933	380.34
7×15	10/12	177.8	380.14	379.933	380.34
8×15	10/12	203.2	380.14	379.933	380.34
9×15	10/12	228.6	380.14	379.933	380.34
12×15	10/12	304.8	380.14	379.933	380.34
5×16	10/12	127	405.54	405.333	405.74
6×16	10/12	152.4	405.54	405.333	405.74
7×16	10/12	177.8	405.54	405.333	405.74
8×16	10/12	203.2	405.54	405.333	405.74
9×16	10/12	228.6	405.54	405.333	405.74
10×16	10/12	254	405.54	405.333	405.74
12×16	10/12	304.8	405.54	405.333	405.74
14×16	10/12	355.6	405.54	405.333	405.74
16×16	10/12	406.4	405.54	405.333	405.74
6×17 3/4	10/12	152.4	449.99	449.783	450.19
7×17 3/4	10/12	177.8	449.99	449.783	450.19
8×17 3/4	10/12	203.2	449.99	449.783	450.19
9×17 3/4	10/12	228.6	449.99	449.783	450.19
10×17 3/4	10/12	254	449.99	449.783	450.19
12×17 3/4	10/12	304.8	449.99	449.783	450.19
14×17 3/4	10/12	355.6	449.99	449.783	450.19
5×20	10/12	127	506.88	506.679	507.086
10×22	10/12	254	557.68	557.479	557.886
12×22	10/12	304.8	557.68	557.479	557.886
14×22	10/12	355.6	557.68	557.479	557.886
15×22	10/12	381	557.68	557.479	557.886
16×22	10/12	406.4	557.68	557.479	557.886
10×30	10/12	254	760.35	760.146	760.552
12×30	10/12	304.8	760.35	760.146	760.552
14×30	10/12	355.6	760.35	760.146	760.552
16×30	10/12	406.4	760.35	760.146	760.552
